Home Gym Shelving & Weight Selection: How Much Do You Really Need?

The Spatial Paradox: Progressive Overload vs. Floor Space

Building a home gym is an exercise in balancing two competing forces: the physiological need for progressive overload and the physical constraints of your square footage. Many lifters fall into the trap of purchasing massive 1,000-pound plate sets simply because they are on sale, only to realize that a mountain of free weights creates a dangerous, cluttered environment. According to the National Strength and Conditioning Association (NSCA), effective resistance training requires structured progression, but it does not require hoarding iron you will not use for another three years.

When planning your space, your weight selection must be directly tied to your storage capabilities. The right home gym shelving strategy does not just organize your equipment; it dictates how much weight you can practically own, store, and safely access without compromising your workout flow or your drywall. This guide breaks down exactly how much weight you need based on your training age, the spatial geometry of different plate materials, and the most effective shelving layouts to maximize your footprint.

Calculating Your Exact Weight Requirements

Before measuring your walls for shelving, you must define your loading parameters. Buying fractional plates and excessive bumper pairs is a common mistake that eats up valuable sleeve space and shelf depth. Your weight selection should be based on your current one-rep max (1RM) on primary compound lifts (squat, deadlift, bench press) plus a 20% buffer for the next 12 to 18 months of progression.

Lifter Profile	Target Max Load	Recommended Plate Breakdown (Pairs)	Total Weight (Excl. Bar)
Beginner (0-12 months)	150 - 225 lbs	2x45, 2x25, 2x10, 2x5, 2x2.5	260 lbs
Intermediate (1-3 years)	300 - 405 lbs	4x45, 2x25, 2x10, 2x5, 2x2.5	440 lbs
Advanced (3+ years)	450 - 600+ lbs	6x45, 2x25, 2x10, 4x5, 2x2.5	620 lbs
Olympic/CrossFit	Varies by WOD	4x45 Bumper, 2x25, 2x15, 2x10	320 lbs (Bumpers)

For most intermediate lifters, a 440-pound plate collection is the sweet spot. It allows for micro-loading, accommodates heavy deadlifts, and leaves enough room on a standard Olympic barbell sleeve. However, 440 pounds of cast iron or rubber takes up significant physical space, which brings us to the geometry of your equipment.

The Spatial Footprint of Free Weights

Not all weight plates are created equal, and their thickness dramatically impacts both your barbell sleeve capacity and your home gym shelving requirements. A standard Olympic barbell sleeve offers exactly 16.3 inches of loadable space. If you opt for thick crumb-rubber bumper plates, you will physically run out of sleeve space before you can load 400 pounds.

• Cast Iron Plates (45 lbs): Approximately 1.2 to 1.5 inches thick. Highly space-efficient. You can easily load 500+ lbs on a single sleeve. Requires heavy-duty, compact shelving.
• Virgin Rubber Bumpers (45 lbs): Approximately 2.8 to 3.2 inches thick. The standard for home gyms. Balances drop-safety with reasonable spatial footprint.
• Crumb Rubber Bumpers (45 lbs): Up to 4.5 inches thick. These are notorious space-hogs. Six pairs will max out a barbell sleeve and require wide-stance A-frame shelving or extensive horizontal wall pegs.

Expert Insight: When calculating your shelving depth, always add 15% to the physical thickness of your plates. A shelf designed to hold exactly 18 inches of plates will result in plates hanging over the edge, creating a severe tipping hazard and making it difficult to slide them on and off the pegs.

Strategic Home Gym Shelving Solutions

Once you know your exact weight requirements and plate dimensions, you can select the appropriate home gym shelving systems. The goal is to eliminate floor clutter, utilize dead space, and maintain a safe center of gravity. Here are the three primary shelving configurations for space-optimized layouts.

1. Rack-Integrated Weight Storage (Zero Footprint)

If you are building a gym in a tight space like a single-car garage or a basement corner, rack-integrated shelving is non-negotiable. Systems like the Rep Fitness PR-4000 or PR-5000 offer weight plate holder attachments that mount directly to the uprights of your power rack.

The Spatial Advantage: This utilizes the negative space behind and beside the rack uprights. By storing your 4x45lb pairs on the rear uprights and your change plates on the front uprights, you consume zero additional square footage on your gym floor. The cost is minimal (typically $40 to $80 for a set of pegs), but it requires a rack with 3x3-inch uprights and 5/8-inch or 1-inch holes for secure mounting.

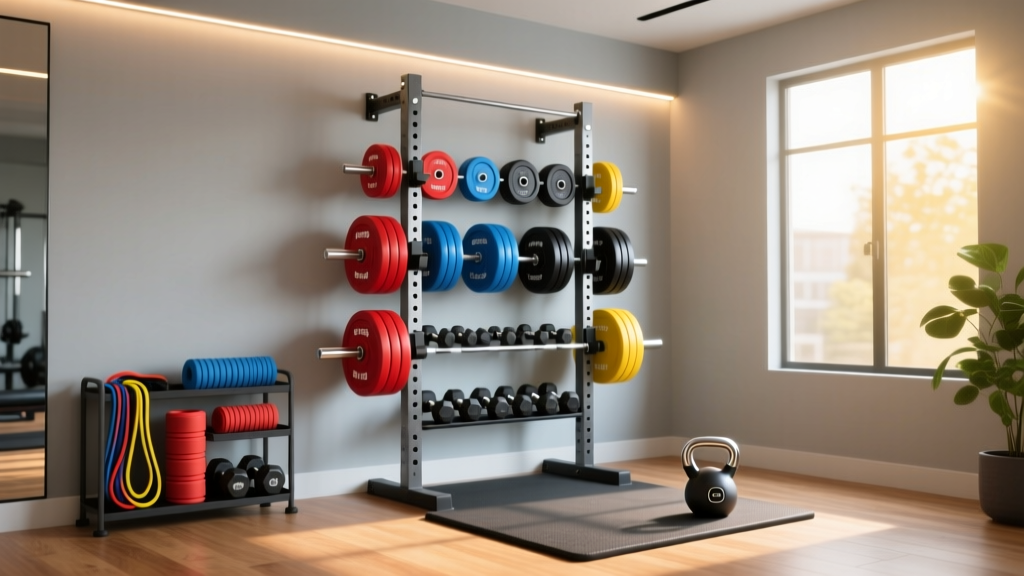

2. Wall-Mounted Plate Pegs & Shelves (Dead Space Utilization)

Walls are the most underutilized asset in home gym layout design. Wall-mounted home gym shelving allows you to store heavy iron above waist height, keeping the floor clear for deadlifts and kettlebell swings.

The Spatial Advantage: A heavy-duty wall-mounted plate tree, such as those offered by Titan Fitness, projects only 18 to 24 inches from the wall. You can mount these in the 'dead corners' of your garage where a full power rack would never fit.

CRITICAL SAFETY WARNING: Never mount heavy weight shelving into standard drywall using toggle bolts. A pair of 45lb cast iron plates generates immense shear force. You must locate your wall studs (typically spaced 16 inches on-center) and secure the shelving bracket using 3/8-inch x 3-inch structural lag bolts directly into the pine or fir studs. Failure to do so will result in catastrophic drywall failure and severe injury.

3. A-Frame Dumbbell & Kettlebell Racks (The Centerpiece)

While plates can be wall-mounted or rack-stored, dumbbells and kettlebells require dedicated floor shelving. The traditional horizontal 3-tier dumbbell rack consumes up to 48 inches of linear wall space.

The Spatial Advantage: The Rogue A-Frame Dumbbell/Kettlebell Rack is the ultimate space-optimization tool for odd objects. With a footprint of just 30 x 30 inches, it stores up to 12 pairs of dumbbells or heavy kettlebells vertically. Placing this A-frame in the center of the room or directly behind the lifter's bench creates a 360-degree accessible island that prevents the 'wall-hugging' effect that makes small gyms feel claustrophobic.

Layout Design: Integrating Shelving into Your Gym Flow

According to ergonomic guidelines detailed by Garage Gym Reviews, a functional home gym relies on the 'Triangle of Flow'—the spatial relationship between your power rack, your primary bench, and your weight storage.

When designing your layout, adhere to these specific clearance measurements to ensure your home gym shelving does not impede your movement:

1. The Loading Zone: You need a minimum of 36 inches of clear space on both sides of your barbell to safely load and unload plates from rack-integrated or wall-mounted pegs. If your wall shelving is placed closer than 36 inches to the end of the barbell sleeve, you will constantly scrape your knuckles against the wall or the shelving brackets during plate changes.
2. The Drop Zone Clearance: If you are using bumper plates and wall-mounted shelving, ensure the shelving is mounted at least 12 inches above the maximum height of your barbell when it is resting in the J-cups. This prevents accidental barbell strikes against your stored weights during heavy rack pulls or failed bench presses.
3. Change Plate Proximity: Fractional plates (2.5s, 5s, 10s) should not be stored on the main wall shelving. They belong in a small, magnetic bin or a dedicated shallow drawer attached directly to the side of your power rack or bench. Walking 10 feet to a wall shelf to grab a pair of 2.5lb plates disrupts your rest timers and ruins the spatial efficiency of your workout.

Summary Checklist for Space-Optimized Loading

To finalize your home gym setup, run through this quick spatial audit before purchasing your next set of weights or shelving units:

• Audit your 1RM: Do you actually need more than 400 lbs of plates right now? If not, stop buying iron and invest in better storage.
• Measure your sleeves: Match your plate thickness (cast iron vs. bumper) to your 16.3-inch sleeve capacity.
• Map your dead space: Identify 18-inch deep wall pockets for heavy plate pegs, utilizing 3-inch lag bolts into studs.
• Isolate odd objects: Use a 30x30 inch A-frame for dumbbells to preserve linear wall space for mirrors and functional trainers.

By treating your home gym shelving as a core component of your programming rather than an afterthought, you ensure that every pound of weight you own serves a purpose, and every square inch of your gym floor remains open for the work that actually matters.
