Power Rack vs Squat Rack Setup: Incline Dumbbell Clearance

The Spatial Engineering of Home Gym Racks

As home gym setups evolve in 2026, the debate between installing a full power rack, a half squat rack, or minimalist squat stands is no longer just about budget or floor space. It is fundamentally about biomechanical clearance and structural safety. While most lifters evaluate racks based on their barbell squat or pull-up clearance, the ultimate stress test for any rack ecosystem is the incline dumbbell press. This movement demands a unique intersection of vertical ceiling height, rack depth, and spotter arm geometry that exposes the flaws in poorly planned installations.

Whether you are bolting down a Rogue RM-6 Monster Rack, assembling a Titan T-2 Short Power Rack, or positioning REP PR-1100 Squat Stands, your installation walkthrough must account for the extreme vertical profile of seated incline dumbbell pressing. This guide provides a complete, step-by-step installation and spatial planning matrix to ensure your equipment is safe, anchored, and optimized for every angle of your training.

The Rack Matrix: Power Rack vs. Squat Rack vs. Squat Stand

Before unboxing your hardware, you must match your rack type to your room's dimensional constraints. The Garage Gym Reviews database highlights that rack depth and upright height dictate not just barbell pathing, but dumbbell maneuverability. Below is a spatial comparison matrix tailored for lifters who prioritize heavy incline dumbbell work alongside traditional barbell lifts.

Rack Category	Example Model (2026)	Footprint Depth	Min. Ceiling Req.	Incline Dumbbell Usability
Full Power Rack	Rogue RM-6 (90")	43 inches	98 inches	Excellent. Bench fits entirely inside; spotter arms catch dropped dumbbells safely.
Half Squat Rack	Titan T-2 Short (82")	24 inches	90 inches	Moderate. Bench must protrude; risk of ceiling strikes during heavy lockouts.
Squat Stands	REP PR-1100 (72")	0 inches (Open)	84 inches	Poor for heavy loads. No overhead catch system; requires manual bailing to the floor.

The Incline Dumbbell Clearance Test

Why use incline dumbbells as the benchmark for rack installation? When you sit on a bench set to a 30-to-45-degree incline holding 100 lb dumbbells, your vertical profile extends significantly above your standing height. According to facility design guidelines outlined by the National Strength and Conditioning Association (NSCA), overhead clearance must account for the user's seated height plus arm extension and equipment variance.

Warning: The Ceiling Strike Hazard
If your ceiling is exactly 84 inches (7 feet) and you are 6 feet tall, your hands will extend to roughly 82 inches when seated on an incline bench. Adding the 14-inch height of the dumbbell plates means you will strike the ceiling or the rack's top crossmembers during lockout. Always measure from the seated bench surface to the lowest overhead obstruction, not just from the floor.

Depth and Spotter Arm Calibration

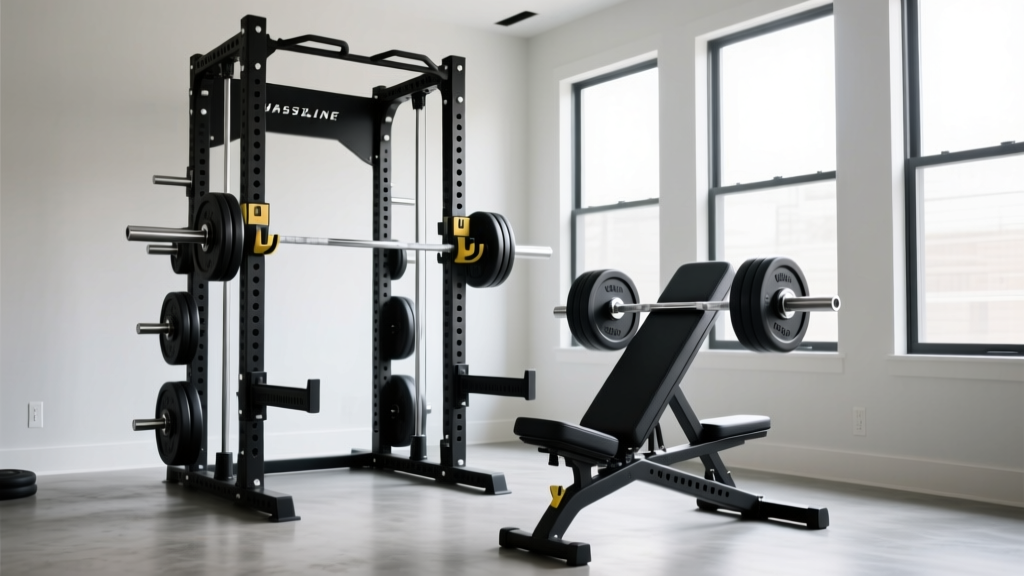

If you are installing a 43-inch deep power rack, an adjustable FID (Flat/Incline/Decline) bench will fit entirely within the uprights. This allows you to position the safety spotter arms at roughly chest height. If you fail an incline dumbbell rep, you can simply open your hands and let the dumbbells drop onto the spotter arms or the floor inside the cage.

Conversely, if you install squat stands, you are entirely exposed. Bailing heavy incline dumbbells requires throwing them laterally to the floor, which can damage subflooring or nearby walls if your spatial buffer is less than 36 inches on either side of the bench.

Step-by-Step Installation Walkthrough

Once you have selected the appropriate rack for your spatial and incline dumbbell requirements, the physical installation must be executed flawlessly. A rack that is out of square will bind barbell sleeves and cause uneven wear on J-cups.

Phase 1: Subfloor Assessment and Anchoring

Do not anchor heavy gym equipment to standard residential plywood subfloors without structural reinforcement. For concrete slab installations (standard in most garages), you must verify the slab thickness and PSI.

1. Verify Concrete Integrity: Ensure your slab is at least 4 inches thick and rated for 3,000 PSI. Avoid anchoring within 5 inches of any concrete edge or expansion joint to prevent blowouts.
2. Select the Right Hardware: Use 3/8-inch or 1/2-inch wedge anchors. As detailed in the Simpson Strong-Tie wedge anchor specifications, these anchors expand at the base of the hole, providing superior pull-out resistance against the dynamic lateral forces generated when racking heavy barbells or dropping dumbbells.
3. Drilling and Cleaning: Use a rotary hammer drill with a carbide bit matching the anchor diameter. Crucially, you must vacuum and blow out the concrete dust from the hole before inserting the anchor. Residual dust reduces holding capacity by up to 40%.
4. Torque Specifications: Tighten the nuts to the manufacturer's specified torque (typically 30-40 ft-lbs for 3/8-inch anchors) using a calibrated torque wrench. Do not use an impact driver, as overtightening can snap the anchor stud.

Phase 2: Frame Assembly and Squaring

Assemble the base of the rack first, but do not fully tighten the horizontal crossmember bolts. Leave them finger-tight. This allows the frame to flex slightly as you stand the uprights.

• The Diagonal Measurement Trick: Use a tape measure to check the distance from the bottom-left corner to the top-right corner, and compare it to the bottom-right to top-left distance. If the measurements are not identical down to the millimeter, your rack is a parallelogram, not a rectangle. Adjust the frame until the diagonals match perfectly.
• Final Torque: Once squared, use a breaker bar or torque wrench to tighten all structural bolts to the manufacturer's specifications (usually between 60-80 ft-lbs for 5/8-inch hardware).

Phase 3: J-Cup and Spotter Arm Tuning

With the rack bolted to the floor, install your J-cups and spotter arms. For the incline dumbbell press, position the spotter arms roughly 2 inches below the bottom of your dumbbell path at maximum stretch. This ensures that if your stabilizer muscles fail, the dumbbells hit the steel safety arms before they can hyperextend your shoulder joints.

Expert Installer Tip: Wrap your spotter arms with high-density EVA foam or old conveyor belting. Dropping 120 lb steel or urethane dumbbells onto bare steel spotter arms from a 30-degree incline will dent the dumbbell casings, chip the rack's powder coat, and create a deafening acoustic shockwave in a residential garage.

Edge Cases and Failure Modes to Avoid

Even with perfect installation, environmental and usage edge cases can compromise safety. Be aware of the following common failure modes observed in home gym setups:

The 'Kick-Up' Tipping Hazard

When lifting heavy incline dumbbells (80+ lbs per hand), lifters use a knee kick-up to get the weights into position. If you are using freestanding squat stands that are not bolted to the floor or a rear-weight-storage base, the violent backward momentum of the kick-up can tip the stands backward. Always bolt squat stands to the floor or load the rear pegs with at least 150 lbs of bumper plates to act as a counterweight.

Wall Clearance for Adjustable Benches

If your power rack is installed flush against a wall, you will not be able to slide an adjustable bench into the rack at an incline angle. The rear support leg of an FID bench requires at least 18 to 24 inches of clearance behind the rack's rear uprights to lay flat or sit at a 45-degree angle. Plan your rack placement at least 3 feet away from any drywall to accommodate bench geometry and wall-mounted storage.

Final Safety Checklist

Before loading your first barbell or picking up your incline dumbbells, run through this final installation audit:

• All wedge anchors are torqued to spec and show no signs of concrete spalling.
• Frame diagonals are perfectly equal; no lateral wobble when shaking the uprights.
• J-cups feature intact UHMW plastic liners to protect barbell knurling.
• Spotter arms are set at the correct height for both flat barbell benching and seated incline dumbbell pressing.
• Overhead clearance has been physically tested with a PVC pipe or broomstick while seated on the incline bench to simulate full arm extension.

By treating your rack installation as a precise engineering project rather than a simple furniture assembly, you guarantee a safe, versatile training environment capable of handling the most demanding biomechanical angles in your programming.
