Revo Treadmill Install Guide & Walking Pad Comparison 2026

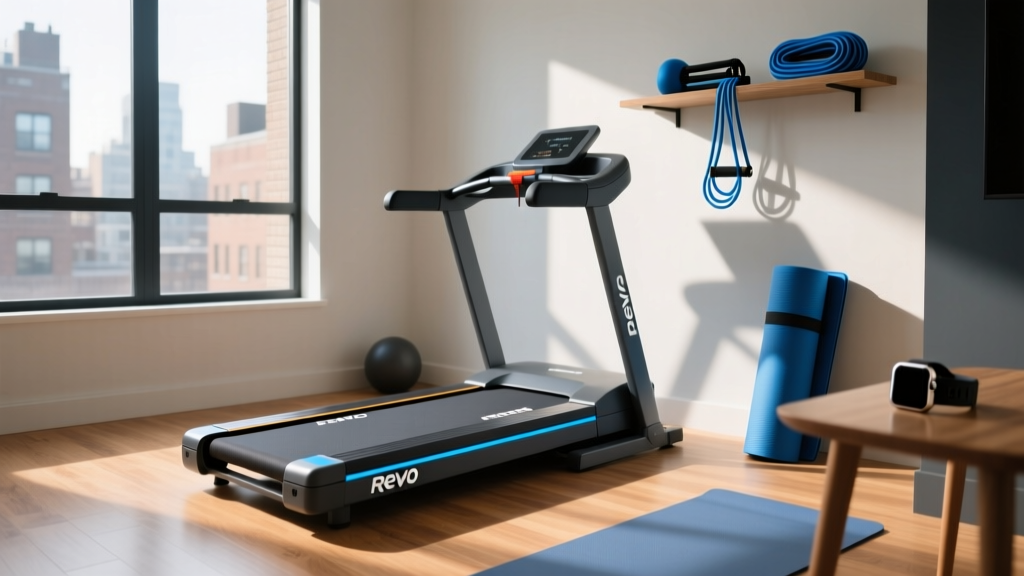

The home fitness landscape in 2026 has been entirely reshaped by the demand for space-efficient cardio. At the center of this shift is the hybrid walking pad—a category that bridges the gap between flimsy under-desk belts and massive, room-dominating commercial treadmills. The Revo Treadmill (Model RV-2026X) has emerged as a top contender in this space, offering a foldable handrail, a 2.5 CHP motor, and a remarkably slim 4.5-inch folded profile. But how does it truly compare to standard walking pads and full-size treadmills? More importantly, how do you set it up correctly to avoid the motor burnout and belt-tracking issues that plague improperly installed compact cardio machines?

In this comprehensive guide, we provide a complete installation walkthrough for the Revo Treadmill, alongside a detailed comparison matrix to help you decide if this hybrid machine is the right fit for your home gym or home office.

Walking Pad vs. Hybrid vs. Full-Size: The 2026 Comparison Matrix

Before unboxing the Revo, it is crucial to understand where it sits in the current cardio hierarchy. Many consumers mistakenly buy standard walking pads expecting to jog, only to find the motors overheat within weeks. Conversely, buying a full-size treadmill for a small apartment creates severe spatial and acoustic issues.

Feature	Standard Walking Pad	Revo Treadmill (RV-2026X)	Full-Size Home Treadmill
Motor Output	1.5 - 2.0 HP (Peak)	2.5 CHP / 1.75 HP Continuous	3.0 - 4.0 CHP
Top Speed	4.0 mph (Walk Only)	7.6 mph (Brisk Jog)	12.0+ mph (Sprint)
Running Surface	40' x 15' (Narrow)	45' x 17' (Hybrid Width)	60' x 20' (Full Stride)
Incline	None (0%)	Manual 3% / 5% / 8%	Motorized 0% - 15%
Footprint (Stored)	55' x 22' x 5'	62' x 28' x 4.5'	75' x 32' x 10' (Upright)
Avg. Price (2026)	$199 - $299	$429 - $479	$899 - $2,500+

According to a comprehensive review of Non-Exercise Activity Thermogenesis (NEAT) published in the National Institutes of Health (NIH), integrating low-impact walking into the workday significantly improves metabolic health without inducing the central nervous system fatigue associated with high-intensity running. The Revo Treadmill hits the 'sweet spot' for this: it offers enough speed and deck width for a light jog, but folds flat enough to slide under a standard 6-inch clearance sofa.

Pre-Installation Checklist & Unboxing Protocol

Compact treadmills are deceptively heavy. The Revo RV-2026X ships in a single, dense box weighing 88 lbs. Do not attempt to lift it vertically by the cardboard straps; the internal foam can tear, causing the motor housing to crack against the deck.

Tools Required for Assembly

• 14mm Socket Wrench (Included, but a ratcheting socket provides better torque control)
• 5mm Allen Key (Included)
• Philips Head Screwdriver (Medium)
• 100% Silicone Treadmill Lubricant (Do NOT use WD-40 or petroleum-based sprays)
• Surge Protector (Minimum 15A rating, 4-foot cord)

Pro-Tip: Before assembling the handrail, inspect the drive belt cover on the front of the deck. Transit drops can misalign the motor pulley. If you hear a rhythmic 'clicking' when spinning the belt by hand before powering it on, loosen the motor mount bolts (12mm), realign the pulley, and retighten.

Step-by-Step Revo Treadmill Installation Walkthrough

Step 1: Deck Placement and Clearance Mapping

The U.S. Consumer Product Safety Commission (CPSC) strictly advises maintaining a minimum clearance zone behind any treadmill to prevent severe friction burns in the event of a fall. As outlined in their official treadmill safety guidelines, you must leave at least 20 inches of clear space behind the machine and 2 feet on each side. Position the Revo on a hard, level surface. If placing it on carpet, use a high-density EVA foam equipment mat to prevent carpet fibers from being sucked into the motor compartment's cooling fan.

Step 2: Handrail U-Bracket Assembly

The Revo utilizes a dual-hinge folding handrail. This is the most critical structural point of the machine.

1. Insert the wiring harness from the lower deck into the hollow right-hand upright post. Crucial: Ensure the 4-pin connector clicks audibly. A loose pin here is the leading cause of 'E01' console communication errors.
2. Slide the U-bracket over the upright posts.
3. Insert the four 14mm carriage bolts. Hand-tighten them first to ensure cross-threading does not occur.
4. Using your socket wrench, torque the bolts to approximately 25 Nm. Warning: The internal threading is aluminum. Over-tightening past 30 Nm will strip the threads, compromising the handrail's stability during jogging.

Step 3: Manual Incline Pin Setup

Unlike motorized incline treadmills, the Revo uses a manual drop-pin system at the rear of the deck. To adjust the incline, you must fold the deck upward, pull the spring-loaded steel pins on the left and right rear stabilizers, and set them into the desired height notch (3%, 5%, or 8%). Ensure both pins are fully seated and locked before lowering the deck. An uneven incline will cause the running belt to track aggressively to one side.

Step 4: Belt Tension and Tracking Calibration

Out of the box, the Revo's belt is tensioned for shipping, not for use.

• The Quarter-Turn Rule: Plug the machine in and start the belt at 2.0 mph. Stand off to the side on the foot rails. If the belt slips under your foot when you step on, locate the left and right rear roller adjustment bolts (6mm Allen).
• Turn both bolts clockwise by exactly one-quarter turn. Wait 10 seconds for the belt to settle.
• Repeat until the belt grips your shoe without hesitation. Do not over-tension; excessive friction will spike the motor amperage and trigger an E05 overcurrent shutdown.

Safety Note on Joint Impact: While walking pads are excellent for low-impact NEAT accumulation, the Mayo Clinic notes that transitioning from walking to jogging requires adequate shock absorption. The Revo features 6-zone elastomer deck cushions. Ensure these cushions are not compressed flat during your initial inspection; if they are, contact support for replacement dampeners before running.

Real-World Troubleshooting: Edge Cases & Failure Modes

Even with a flawless installation, compact treadmills can present unique technical quirks. Here is how to troubleshoot the most common Revo Treadmill error codes and mechanical edge cases.

Error Code E01 (Communication Loss)

Symptom: The console lights up, but the belt does not start, and 'E01' flashes.
Fix: This is almost always a pinched wiring harness inside the folding hinge. Unplug the machine, remove the 4 plastic hinge covers (Philips screwdriver), and check the 4-pin wire. If the wire is crimped by the hinge mechanism, gently reroute it through the secondary cable channel and apply a piece of electrical tape to secure it away from the moving joint.

Error Code E05 (Motor Overcurrent / Thermal Shutoff)

Symptom: The treadmill stops abruptly after 15-20 minutes of jogging.
Fix: The Revo's 2.5 CHP motor draws significant current when the belt friction is high. First, check your wall outlet. If the treadmill shares a 15A circuit with a space heater or window AC unit, the voltage drop will cause the motor to over-amp. Move the treadmill to a dedicated 20A circuit. Second, lift the belt and apply 5ml of 100% silicone lubricant directly to the center of the wooden deck.

Aggressive Belt Drift to the Left

Symptom: The belt constantly rubs against the left plastic side rail.
Fix: Do not just tighten the left bolt. Belt drift is often caused by an uneven floor. Use a carpenter's level across the width of the deck. If your floor slopes, adjust the threaded leveling feet on the rear stabilizer bar until the deck is perfectly horizontal. Only adjust the roller tension bolts if the drift persists on a verified level surface.

Expert Verdict: Is the Revo Treadmill Worth the Footprint?

The Revo Treadmill RV-2026X successfully bridges the frustrating gap between underpowered walking pads and cumbersome traditional treadmills. Priced at $429, it offers a genuine 7.6 mph jogging capability and a manual incline that standard walking pads completely lack. However, its installation requires more attention to detail than a plug-and-play under-desk pad. The manual incline pins and hinge-wiring routing demand a methodical setup process. If you are strictly looking for a device to slide under a standing desk for slow, 2.0 mph walking while typing, a $200 standard walking pad is sufficient. But if you want a versatile machine that allows you to transition from a morning email walk to a 6.0 mph evening jog, and then fold it away into a 4.5-inch gap, the Revo Treadmill is currently the most structurally sound hybrid option on the 2026 market.
