Seated Row Setup: Configuring Lat Pulldown Machine Weights & Cables

Pre-Installation: Space Planning and Tool Requirements

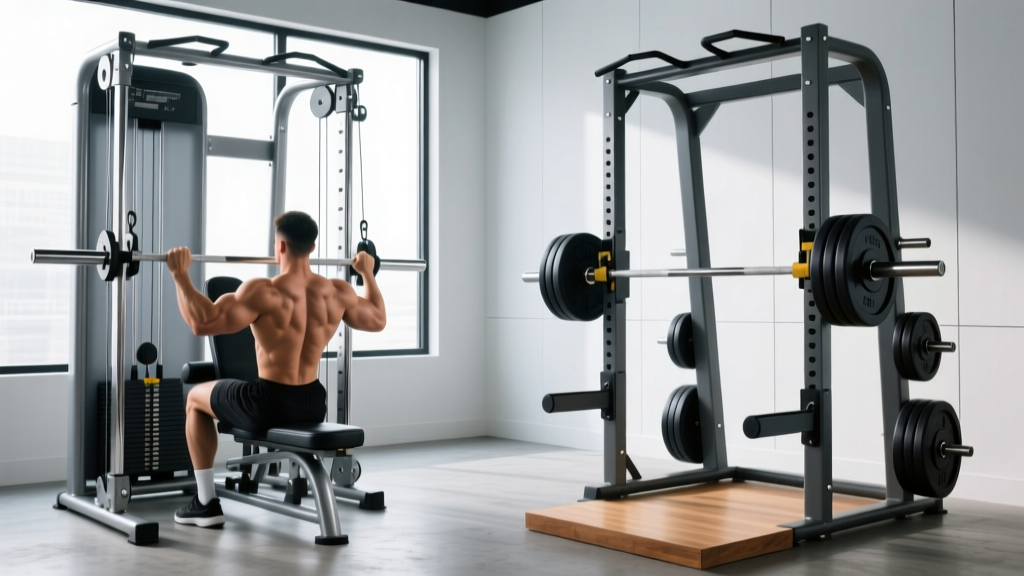

Setting up a dual-function lat pulldown and seated row machine requires precision. Unlike standalone power racks, combo units rely on complex cable routing and precise weight stack alignment. In 2026, the most popular home gym models—such as the Titan Fitness F-2 Lat Pulldown and Low Row or the Rogue Monster Lite Lat/Row—feature footprints averaging 30 inches by 50 inches. However, you must account for an additional 36 inches of clearance in the front for the seated row footplates and bench, plus 18 inches on the sides for loading bumper plates if your unit includes a plate-loaded carriage.

Floor Load & Protection: A fully assembled combo machine with a 200 lb weight stack and steel frame can exceed 650 lbs. Place the unit over 3/4-inch thick vulcanized rubber mats to distribute the point load and prevent the leveling feet from punching into drywall or subflooring.

Required Tools for Assembly

• Metric Hex Key Set (M5, M6, M8)
• 17mm and 19mm Open-End Wrenches
• Calibrated Torque Wrench (10-60 Nm range)
• Rubber Mallet (for seating guide rods)
• Needle-Nose Pliers (for cotter pin insertion)

Step 1: Assembling the Main Frame and Weight Stack

The structural integrity of your machine hinges on the main vertical uprights. Begin by bolting the base plate to the vertical uprights using the provided M10x35 hex bolts. Do not fully tighten these until the entire lower frame is squared. Use a carpenter's square to ensure a perfect 90-degree angle between the seat rail and the main upright.

Configuring the Lat Pulldown Machine Weights

The heart of the resistance system is the weight stack. Properly configuring the lat pulldown machine weights is critical for smooth operation during both high-pulley pulldowns and low-pulley seated rows. Modern 2026 models typically use 10 lb or 15 lb increment plates coated in black oxide or electrostatic powder to reduce friction.

1. Install the Guide Rods: Slide the two chrome or stainless steel guide rods through the center holes of the weight plates. Ensure the rods are perfectly vertical; even a 2-degree tilt will cause the plates to bind during rapid eccentric movements.
2. Seat the Bumper Plate: Place the urethane bumper pad at the bottom of the stack. This absorbs the shock when the user drops the weight, preventing the steel plates from chipping and the guide rods from mushrooming at the base.
3. Insert the Selector Pin: Most premium units now utilize magnetic selector pins rather than spring-loaded pop-pins. Ensure the magnetic head fully engages the steel weight plate. If the pin is inserted at an angle, it can shear the internal carriage catch during heavy seated rows.

Step 2: Routing the Cables for the Seated Cable Row

Cable routing is where most installation errors occur. A misrouted cable will result in severe friction, premature fraying, and inaccurate weight scaling. According to kinesiology data from ExRx.net, the seated cable row requires a consistent resistance curve to properly target the latissimus dorsi and rhomboids; cable friction directly disrupts this curve.

The Low Row Cable Path

Using the provided 3/16-inch nylon-coated aircraft cable (rated for over 2,000 lbs of tensile strength), follow this exact routing path:

• Anchor Point: Secure the cable swivel to the bottom carriage of the lat pulldown machine weights stack.
• Pulley 1 (Bottom Idler): Route the cable down and under the lowest floating pulley located near the floor bracket.
• Pulley 2 (Vertical Guide): Pull the cable up through the vertical tube guide to prevent it from slapping against the upright during use.
• Pulley 3 (Top Transfer): Route over the top transfer pulley, directing the cable toward the front of the machine.
• Pulley 4 (Seated Row Exit): Feed the cable down through the front low-pulley housing and attach the carabiner to the low-row D-handle or V-bar.

Warning - Cable Tensioning: Once routed, adjust the tensioning turnbuckle at the top anchor. The cable must have enough tension so that it does not go slack when the weight stack is fully rested. A slack cable will jump the pulley groove and jam the machine. Aim for a resting tension of roughly 10-15 lbs.

Step 3: Footplate and Seat Pad Calibration

Ergonomics dictate the effectiveness of the seated row. If the footplate is too close, the knees will excessively flex, limiting the range of motion and placing undue shear force on the patellar tendon. If too far, the user will slide forward on the seat pad during heavy pulls.

Optimal Measurement Guidelines

Adjust the footplate using the pull-pin mechanism. For an average user (5'9"), the distance from the front edge of the seat pad to the footplate should be approximately 22 to 26 inches. When the user's feet are planted and knees slightly bent, the knee angle should rest between 15 and 20 degrees of flexion. Ensure the seat pad is locked into the horizontal track securely; a wobbly seat pad will leak kinetic energy during the concentric phase of the row.

Weight Stack vs. Plate-Loaded: A Configuration Comparison

While this guide focuses on pin-loaded setups, many 2026 combo machines offer a plate-loaded horn for the low row. Understanding the mechanical differences helps you decide which configuration to use for your specific training blocks.

Feature	Pin-Loaded Lat Pulldown Machine Weights	Plate-Loaded Low Row Horn
Max Resistance	Typically 200 lbs (Stack) + Carriage	Limited only by plate availability (400+ lbs)
Adjustment Speed	Instant (Magnetic Selector Pin)	Slow (Requires manual plate loading)
Friction Profile	Higher (Multiple pulleys and guide rods)	Lower (Direct pivot or simple cable path)
Maintenance Needs	High (Cable tensioning, guide rod lube)	Low (Occasional pivot bolt greasing)

Troubleshooting Cable Slack and Friction (Failure Modes)

Even with meticulous installation, cable systems can develop issues. The Consumer Product Safety Commission (CPSC) regularly issues warnings regarding pinch points and cable snap-backs on home gym equipment. Proactive troubleshooting is a mandatory safety measure.

Common Failure Modes & Fixes

• Sticky Weight Stack: If the lat pulldown machine weights stick on the descent, the guide rods are likely dry or oxidized. Fix: Wipe the rods with a microfiber cloth and apply a light coat of 100% silicone spray. Never use WD-40 or petroleum-based lubricants, as they attract dust and create an abrasive paste.
• Cable Chatter/Vibration: A buzzing sound during the eccentric phase of the seated row indicates insufficient cable tension or a worn nylon pulley. Fix: Tighten the turnbuckle by 3-4 clockwise turns. Inspect the pulley bearings; if they grind, replace the pulley immediately.
• Uneven Stack Lifting: If the weight stack tilts to one side, the carriage bushings are worn, or the selector pin is not fully seated. Fix: Verify the pin is flush against the magnetic stop and check the UHMW plastic bushings inside the weight plates for cracking.

"The biomechanical efficiency of a cable row is entirely dependent on the mechanical advantage of the pulley system. A 10% loss in tension due to un-lubricated guide rods or misaligned pulleys forces the lifter to compensate with momentum, drastically reducing the time-under-tension for the mid-back musculature."
— Applied Kinesiology Principles in Resistance Training

Final Safety Checks and Maintenance Schedule

Before loading the machine to your working sets, perform a full-range-of-motion test with 50% of your one-rep max. Execute 10 slow, controlled repetitions on both the lat pulldown and the seated row. Watch the cable at every pulley junction to ensure it tracks perfectly in the center of the groove.

Ongoing Maintenance Matrix

• Weekly: Wipe down the seat pad and footplates with a non-corrosive antibacterial wipe. Inspect the cable carabiners for gate spring tension.
• Monthly: Check all structural M10 and M8 bolts with a torque wrench. Vibration from dropping the lat pulldown machine weights can loosen hardware over time. Re-torque to 40 Nm.
• Bi-Annually: Apply silicone lubricant to the guide rods. Inspect the aircraft cable for 'fish-hooks' (broken micro-strands of steel). If more than two strands are broken within a 12-inch span, replace the entire cable immediately.

By following this comprehensive walkthrough, your dual lat pulldown and seated row machine will provide a smooth, safe, and biomechanically optimal training experience for years to come. Proper setup of the lat pulldown machine weights and meticulous cable routing are the cornerstones of a high-performance home gym.
